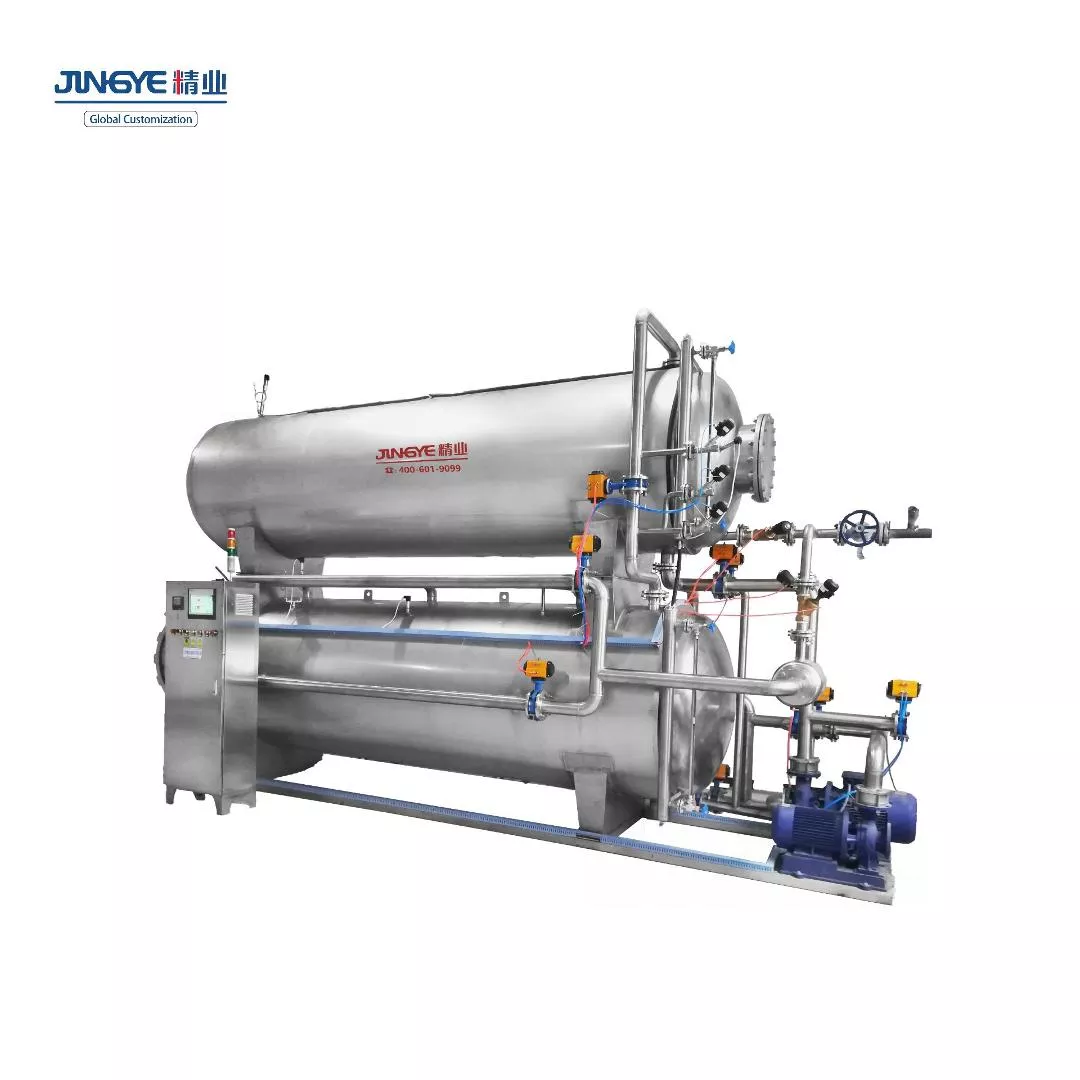

Water bath double tanks sterilization retort

Water bath double tanks sterilization retort

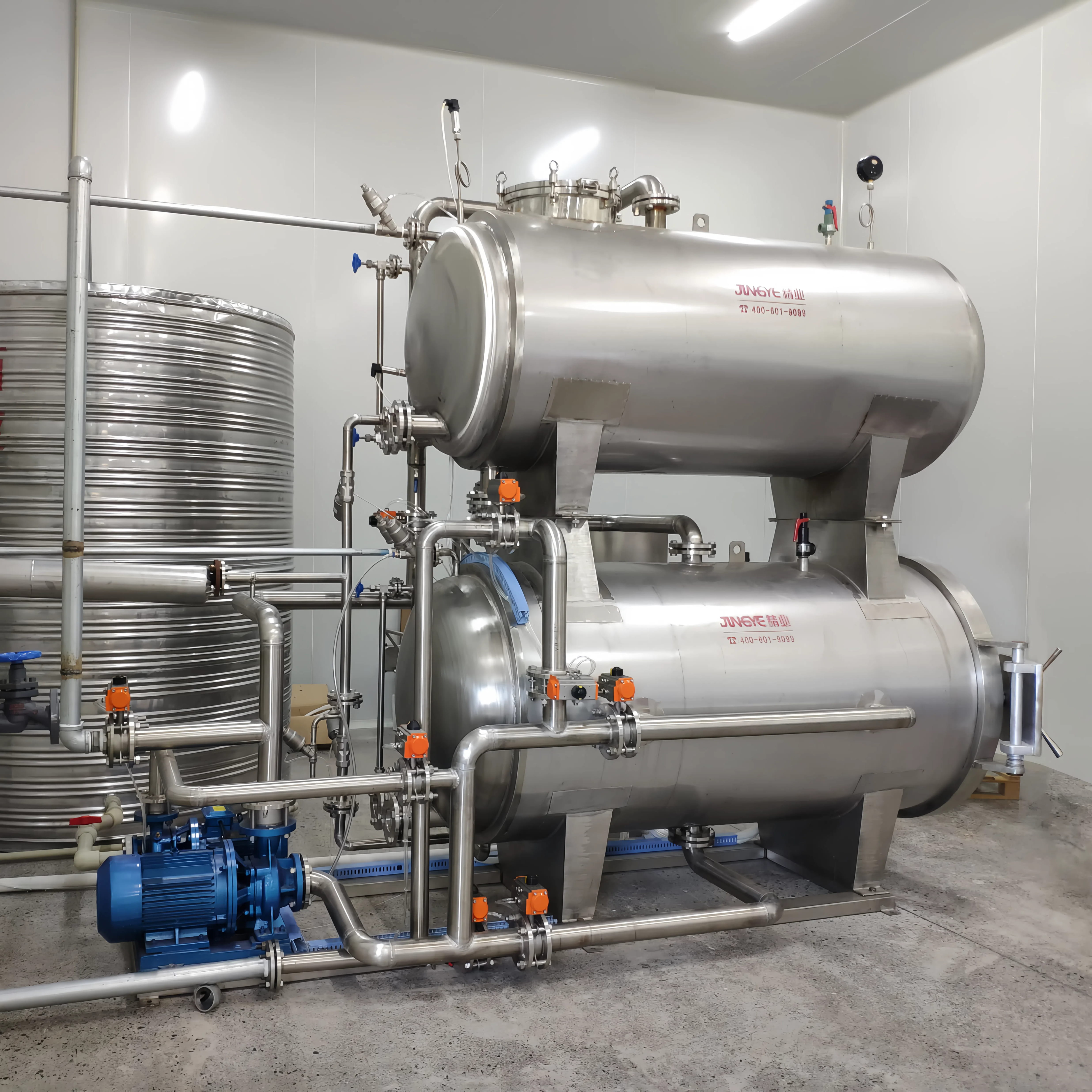

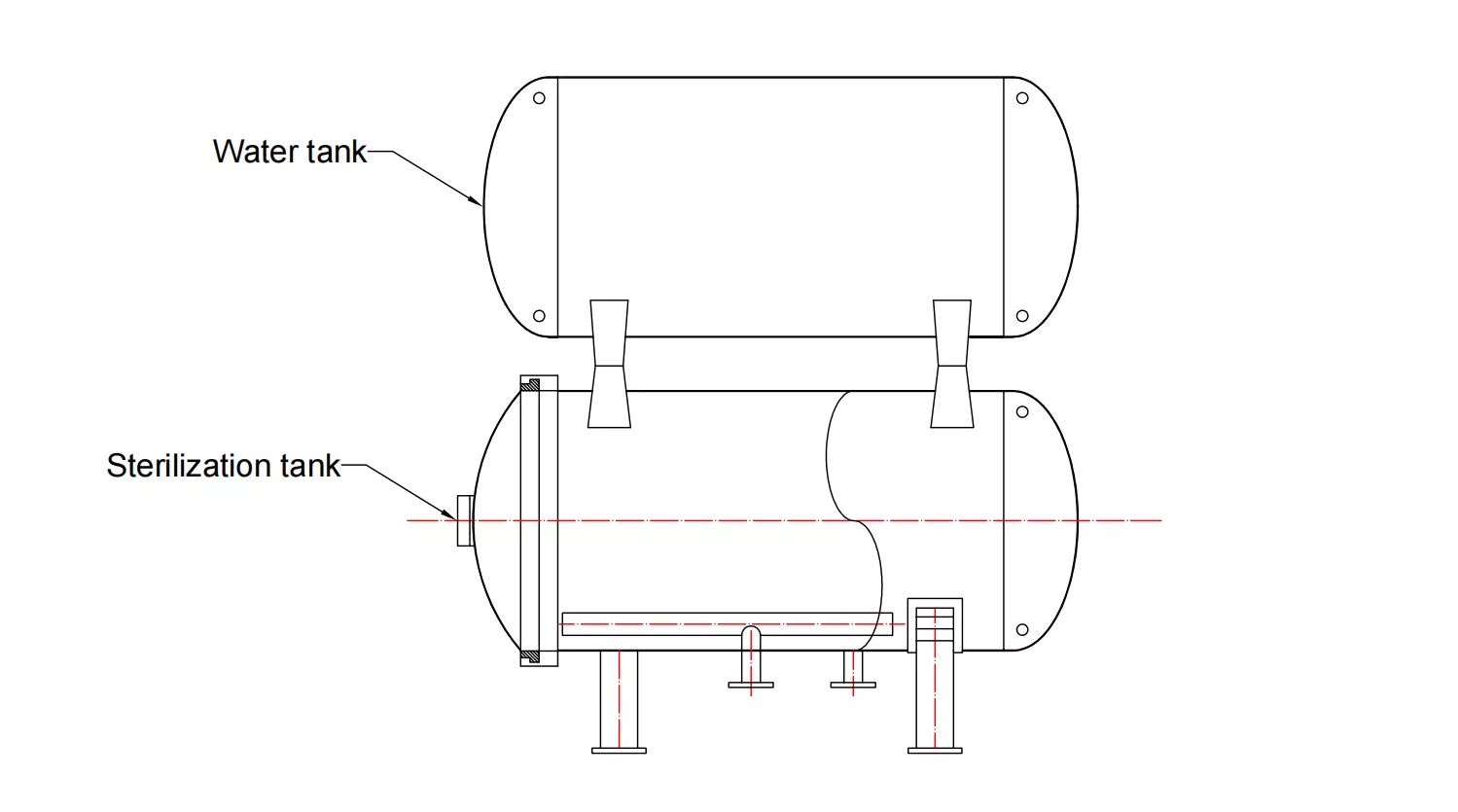

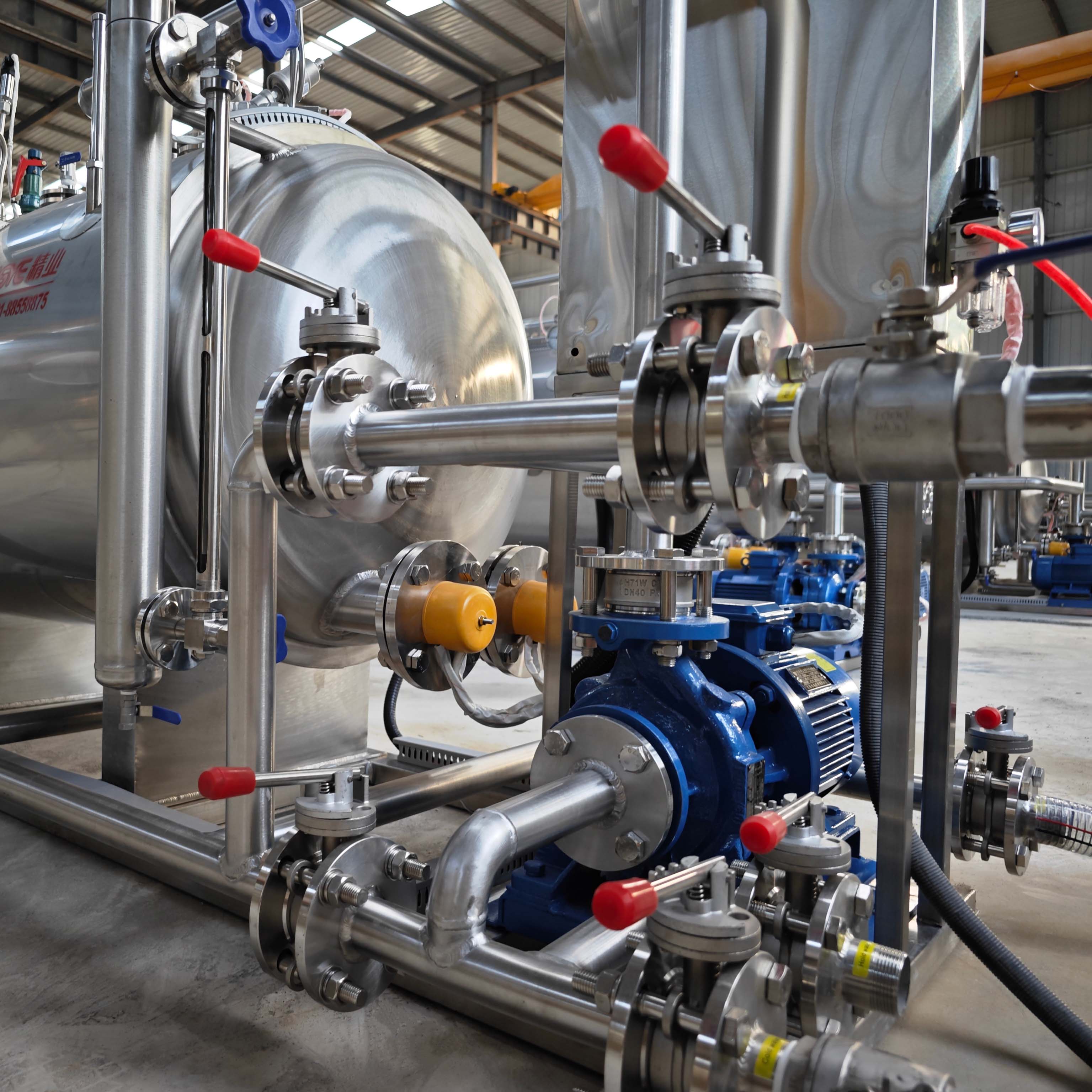

Tank Structure : The unit consists of a sterilization tank, a hot water tank, a pump, connecting pipes, and an integrated PLC automatic control system.

Control System : The system uses a 10-inch PLC with a touch screen for programming and control. It allows for one-touch sterilization startup, with intelligent regulation of sterilization temperature and pressure. Additionally, analog sensors and automatic valve controls are available throughout the entire process. Multiple sterilization programs can be pre-set to reduce labor and simplify operations.

Sterilization Method : The water bath sterilization process begins by heating the water in the hot water tank to the required sterilization temperature (except in multi-stage sterilization). This helps shorten the process time and increases work efficiency. The water in the tank circulates continuously—up, down, left, and right—ensuring even heat distribution and eliminating any cold spots.

Heating Method : The system offers both electric and steam heating options, allowing for customization based on the site’s specific requirements.

Whatapp：+86 182 7962 8835

Email: sales@cookmach.com

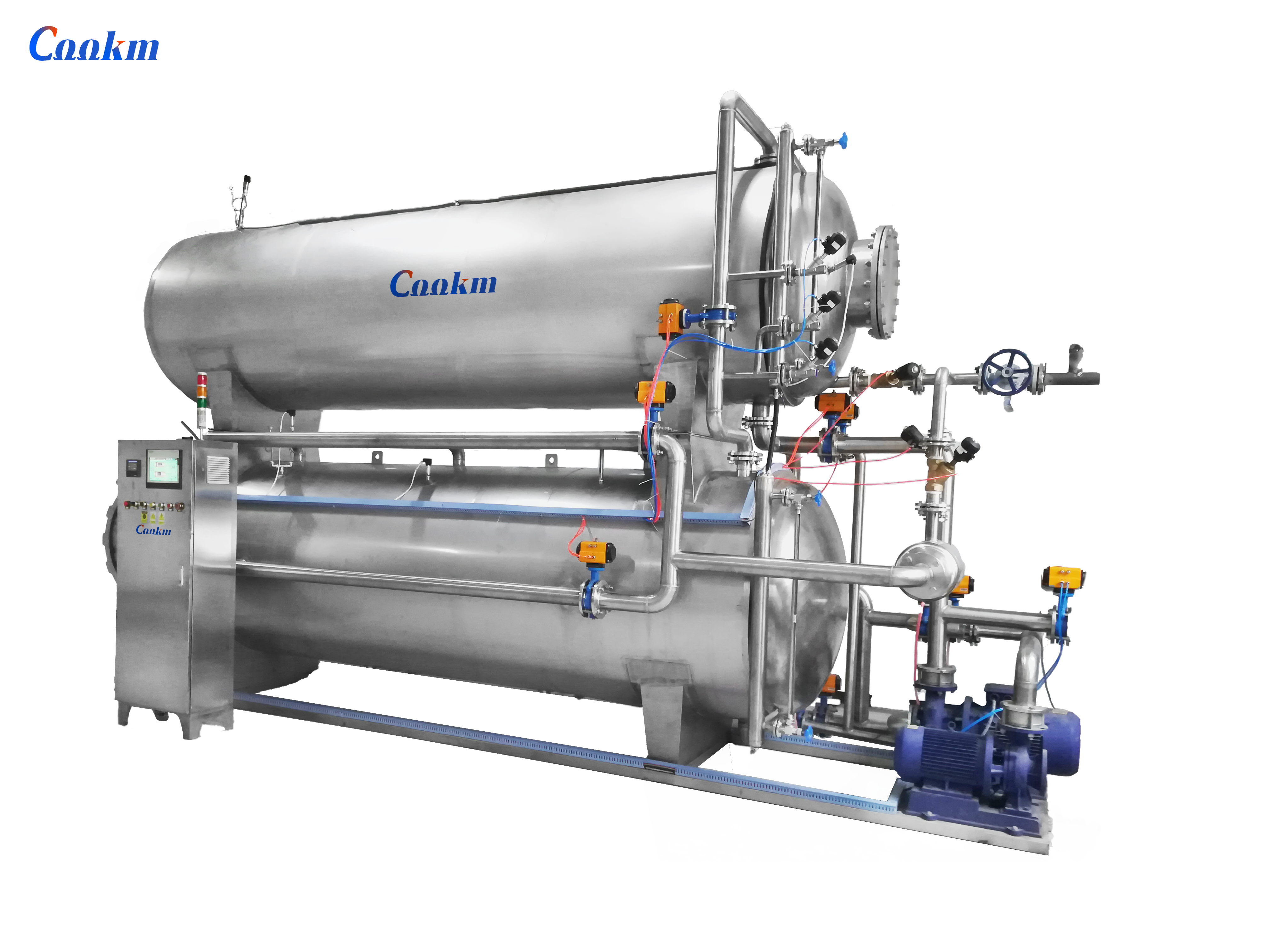

Water bath double tanks sterilization retort

Applications

This sterilization retort is ideal for sterilizing a wide range of products, including meat, dairy items, fruits, vegetables, beverages, eggs, and other food products. It efficiently conducts high-temperature rapid sterilization on packaged goods such as composite films, tied casings, plastic boxes, cans, glass bottles, plastic bags, and more.

Features

The retort is equipped with a sterilization tank, a hot water tank, a water pump, connecting pipes, and a PLC-based automatic control system. The system ensures that the water inside the tank circulates continuously in all directions—up, down, left, and right—allowing for even sterilization with consistent temperature distribution, eliminating any cold spots.

Applications

Model	Volume (L)	Diameter （mm）	Heating method	Dimensions （mm）
CKH-SSG-0608	0.3m³	Φ600*800	Z-steam/D-electric	185012501250
CKH-SSG-0712	0.5m³	Φ700*1200	Z-steam/D-electric	235013502150
CKH-SSG-0918	1.2m³	Φ900*1800	Z-steam/D-electric	325014502450
CKH-SSG-1024	2.0m³	Φ1000*2400	Z-steam	385015503050
