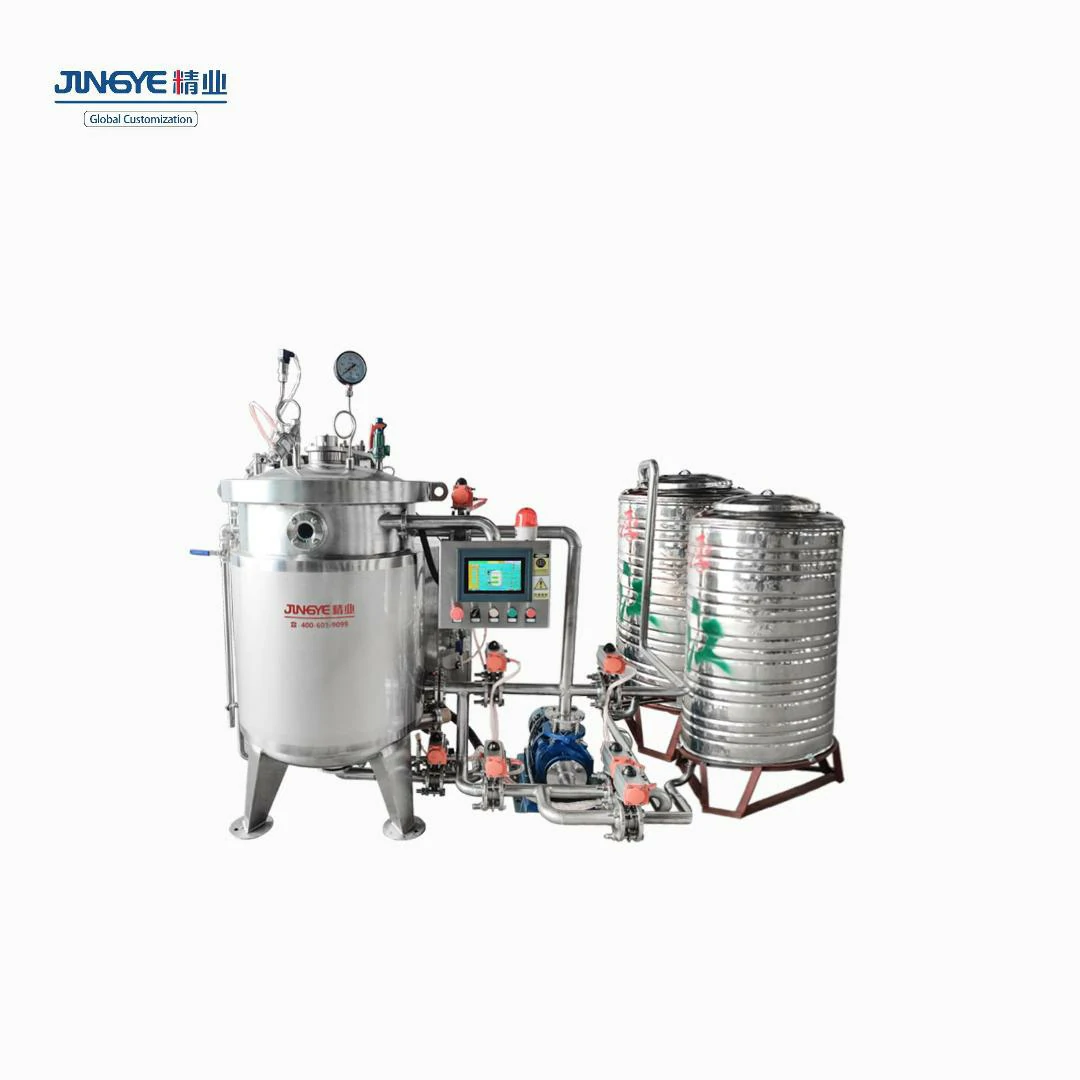

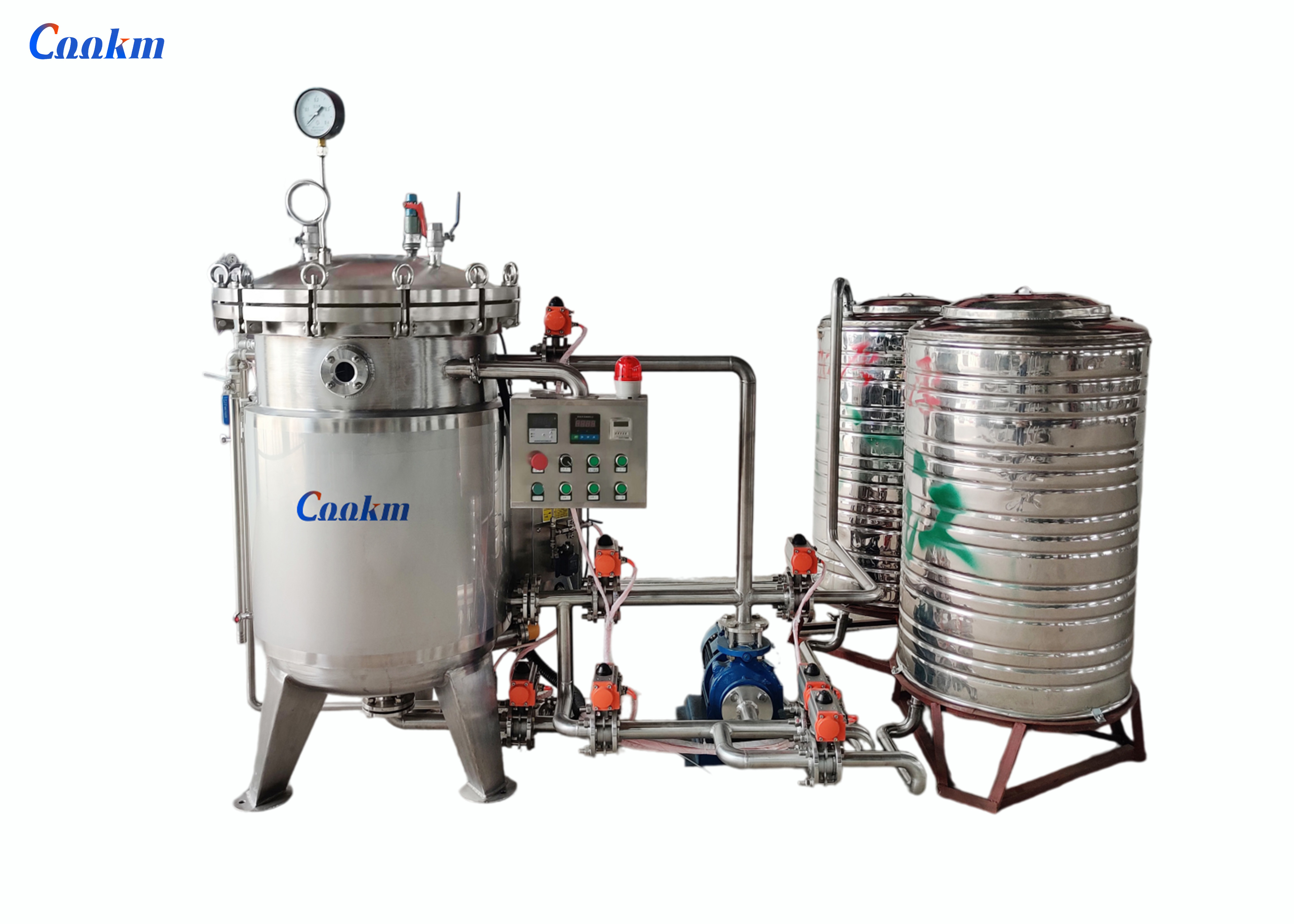

Vertical Sterilization Retort

Vertical sterilization retort

Applications

The vertical steam sterilizer is primarily designed for high-temperature sterilization of meat products, egg products, dairy products, bone broth, beverages, and pet food. It helps extend the shelf life of these products.

Features

Constructed from food-grade 304/316 stainless steel, this sterilizer operates with full automation via PLC and touch screen programming. It offers options for either electric or steam heating. The sterilization process is automatically controlled to effectively eliminate bacteria, viruses, and other microorganisms using high-temperature, high-pressure steam.

Applications

Model	Volume (L)	Diameter （mm）	Heating power （Kw）	Heating method	Dimensions （mm）
CKH-SLG-250L	250	Φ600*800	24	Z-steam/D-electric	185012501350
CKH-SLG-500L	500	Φ800*1000	36	Z-steam/D-electric	205014501550
CKH-SLG-1000L	1000	Φ1000*1200	60	Z-steam	225016501850
CKH-SLG-1500L	1500	Φ1200*1500	/	Z-steam	245018502150
CKH-SLG-2000L	2000	Φ1300*1500	/	Z-steam	255019502150
