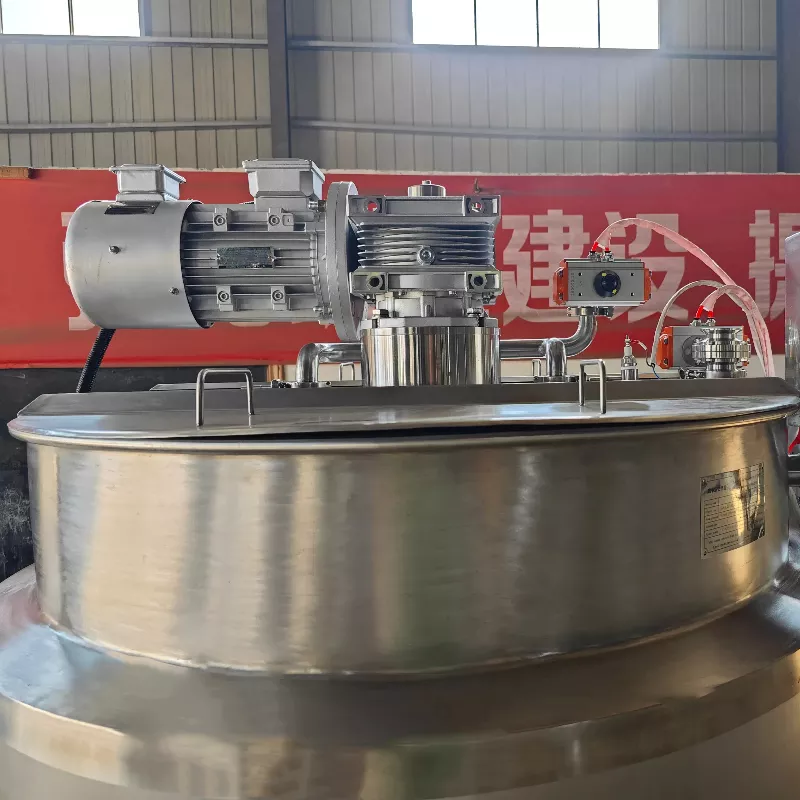

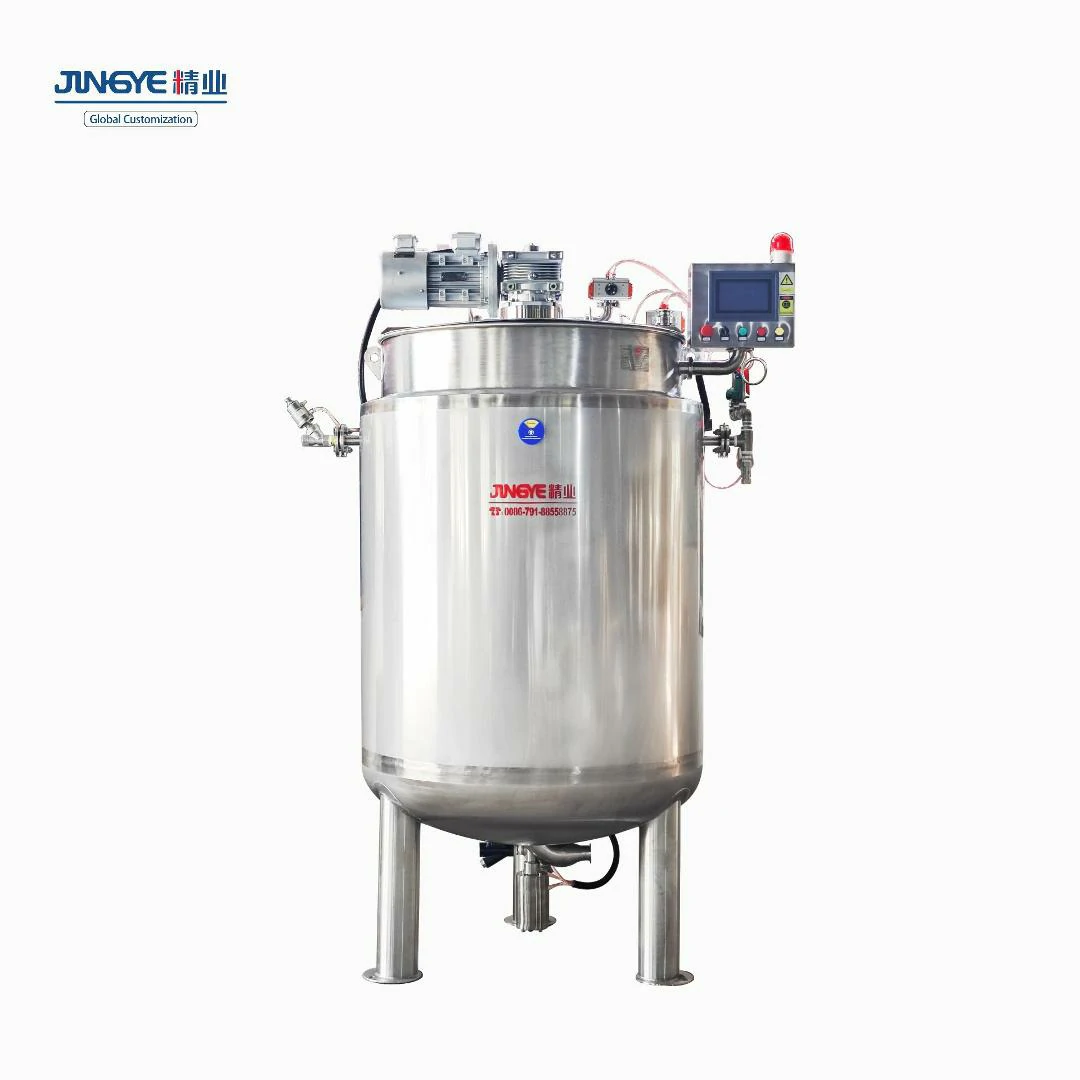

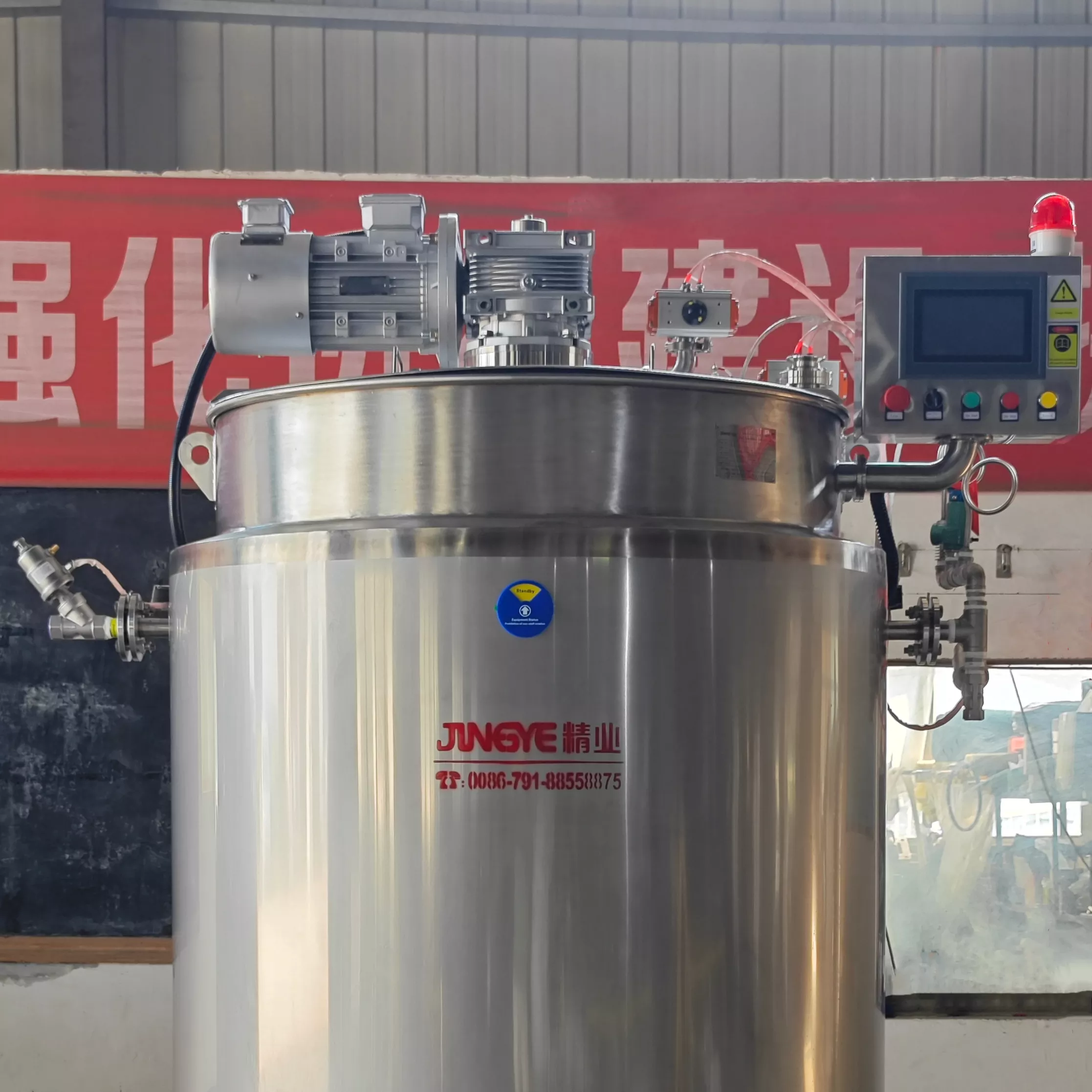

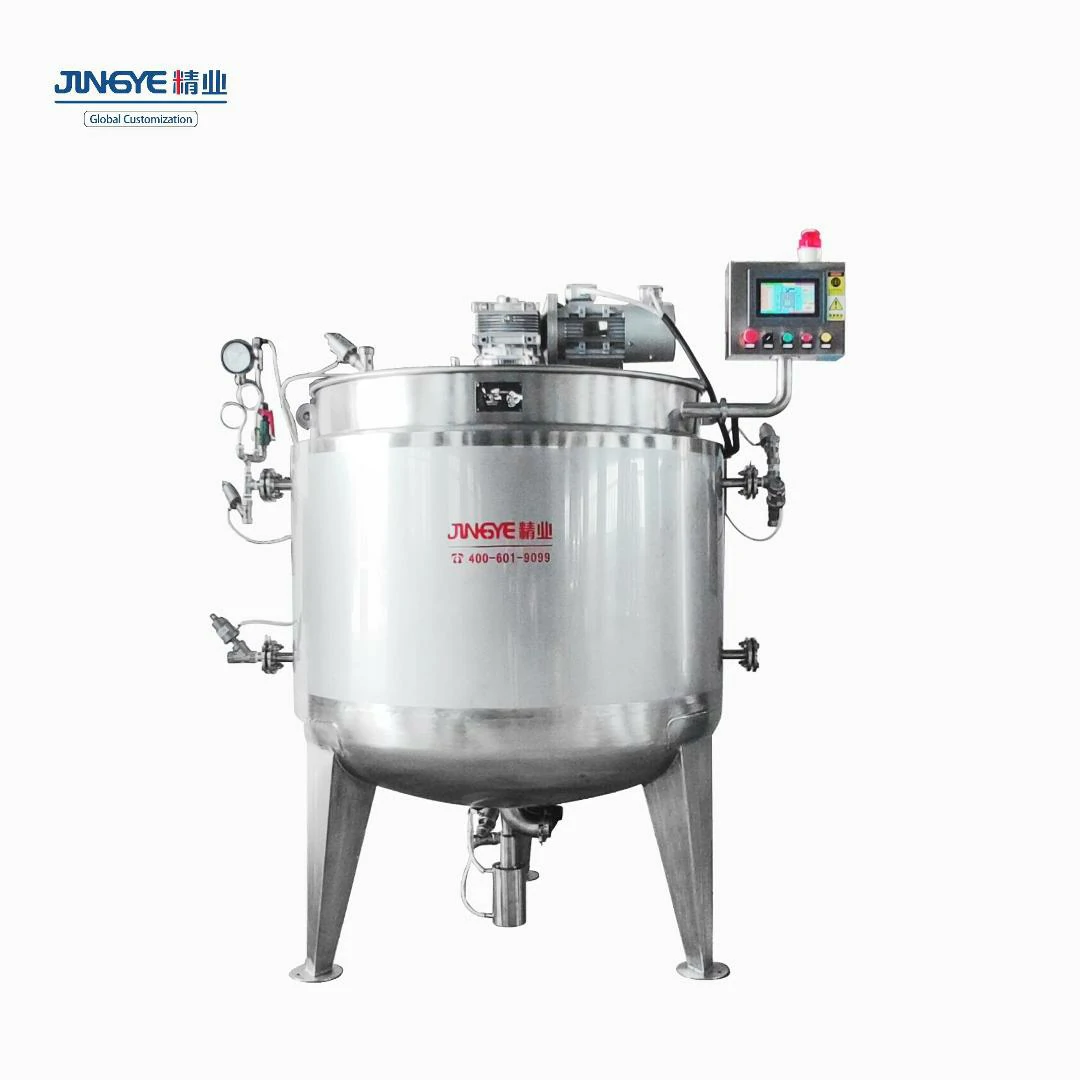

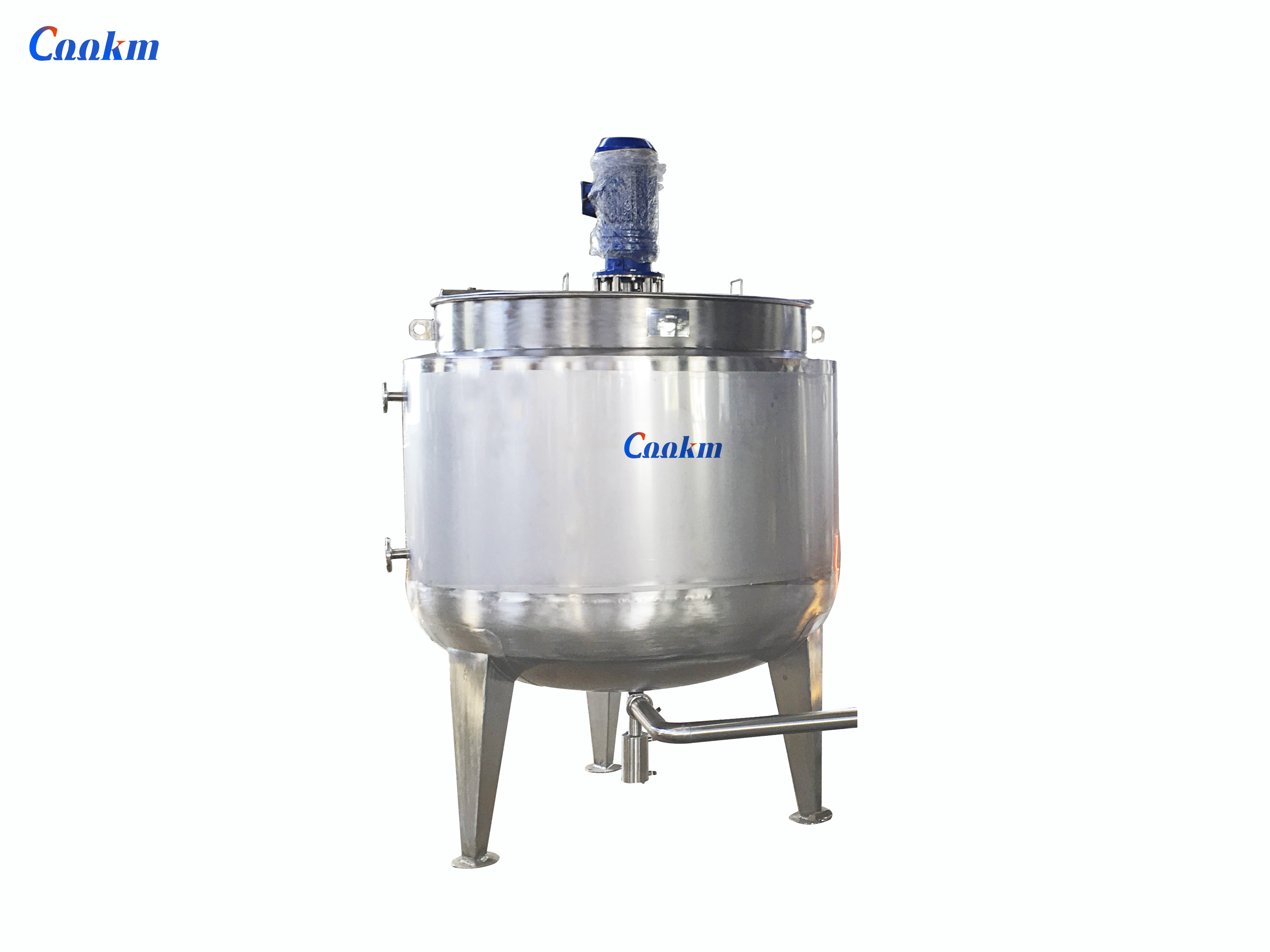

mixing tank with agitator

MaterialBuilt with premium SUS 304/316 food-grade stainless steel. The surface is smooth, aesthetically pleasing, highly durable and easy to clean and maintain. :

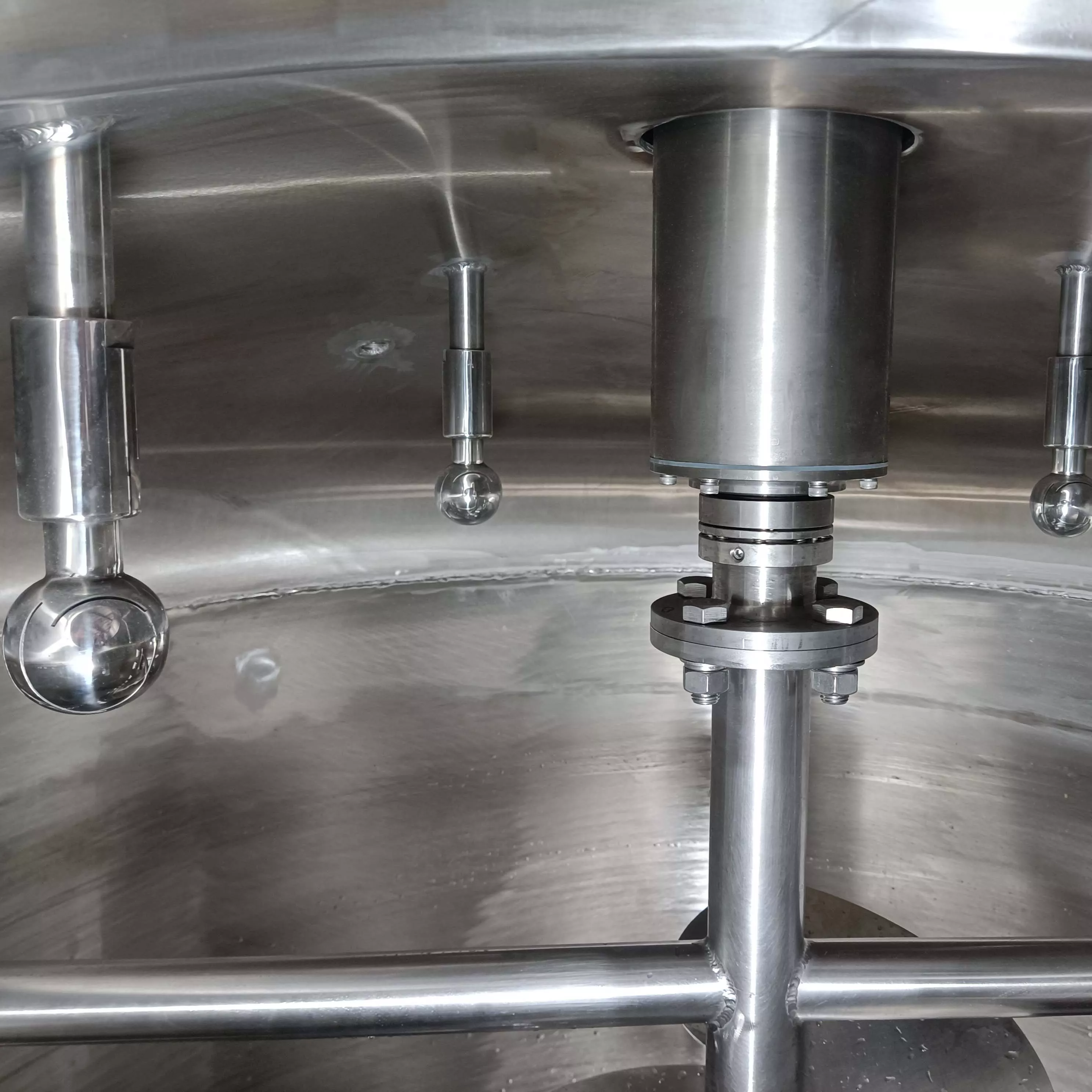

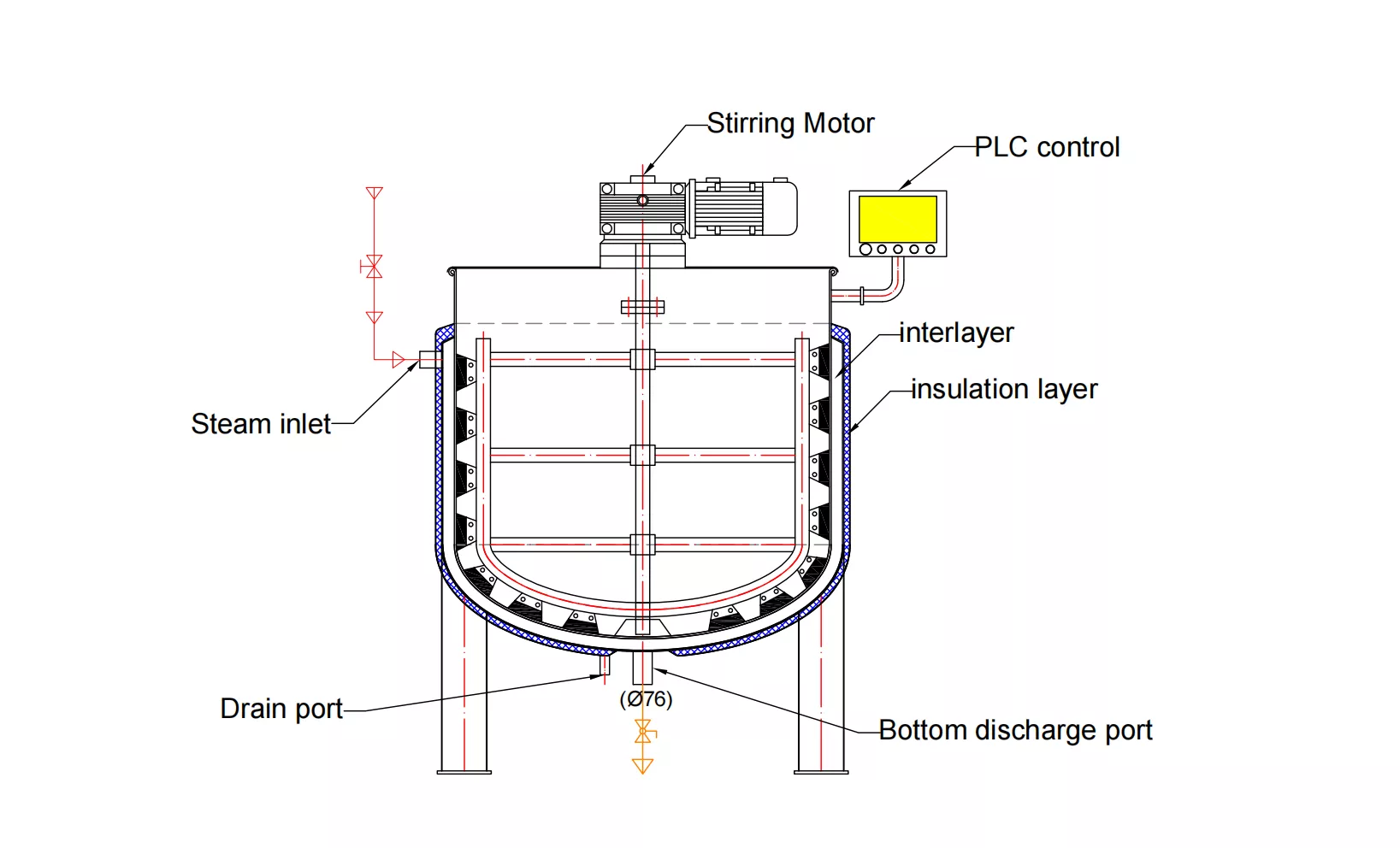

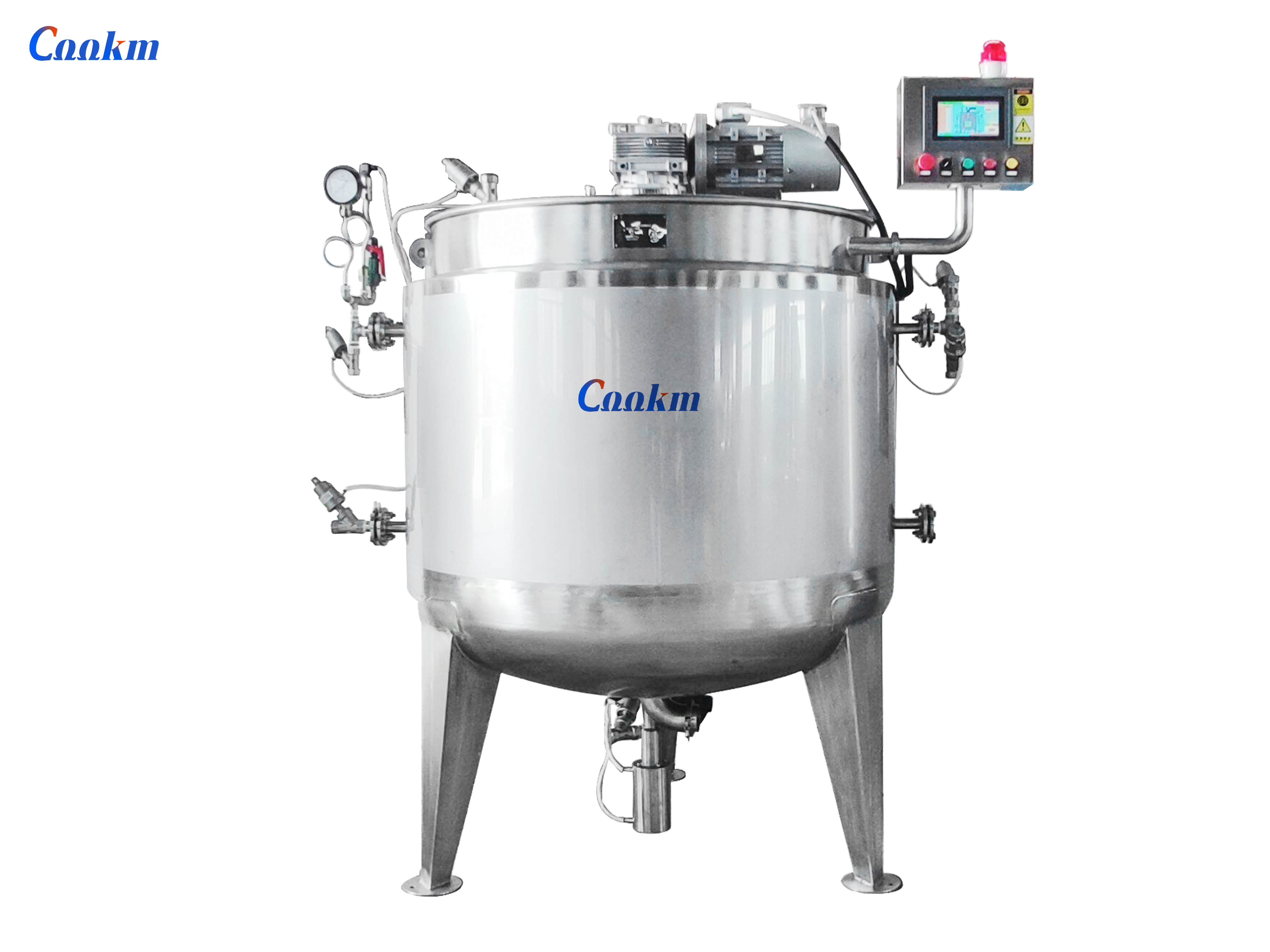

StructureThe unit consists of a main tank body, stirring device, water inlet and outlet pipelines, heating system and PLC intelligent control system for complete integrated operation. :

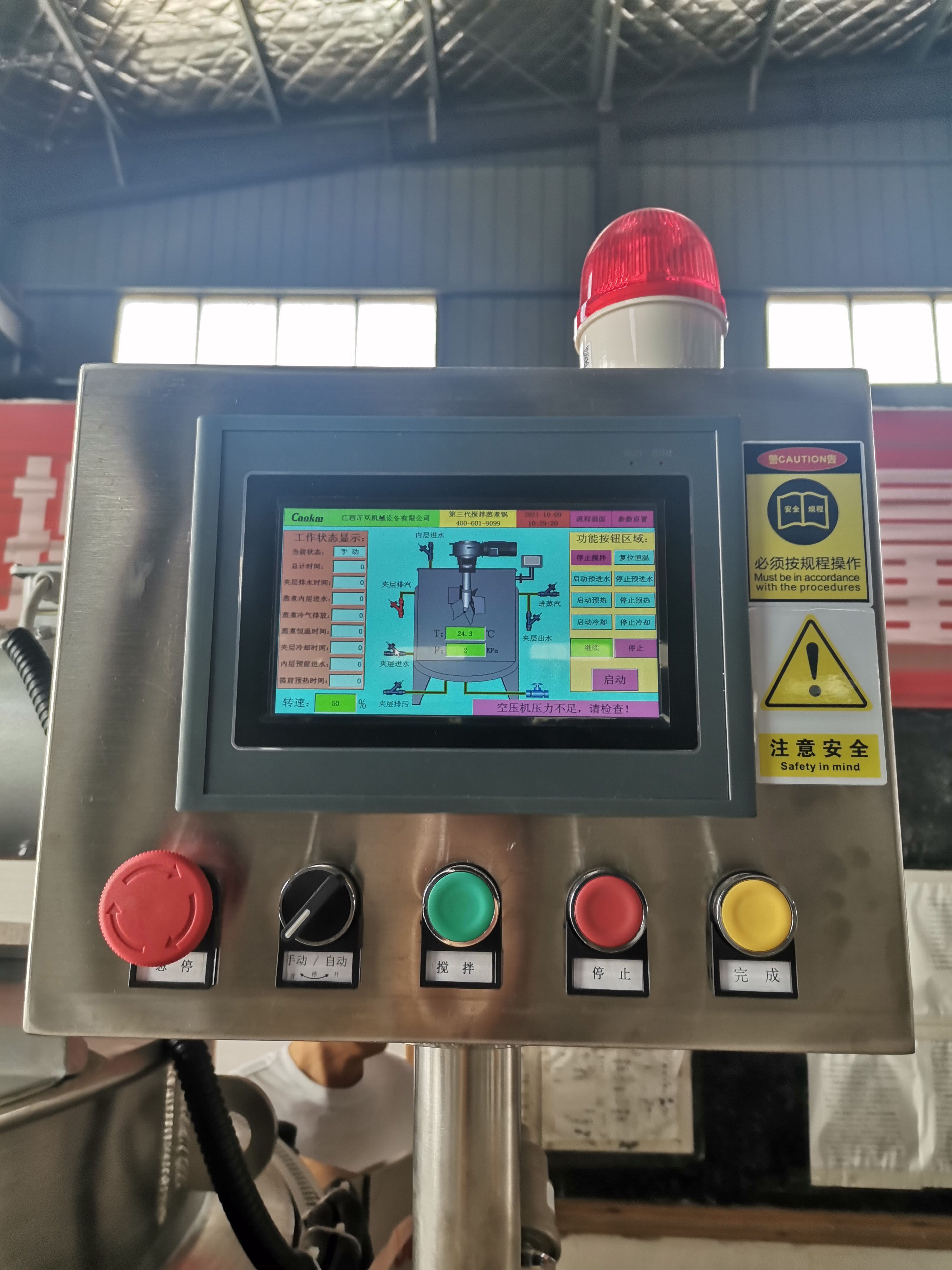

FunctionEquipped with a PLC programmable intelligent control system, it realizes automatic cooking and stirring, supporting standardized and mass batch production. :

Safety PerformanceIntegrated with a fault self-detection module and an anti-misoperation safety alarm system to ensure stable and safe equipment operation. :

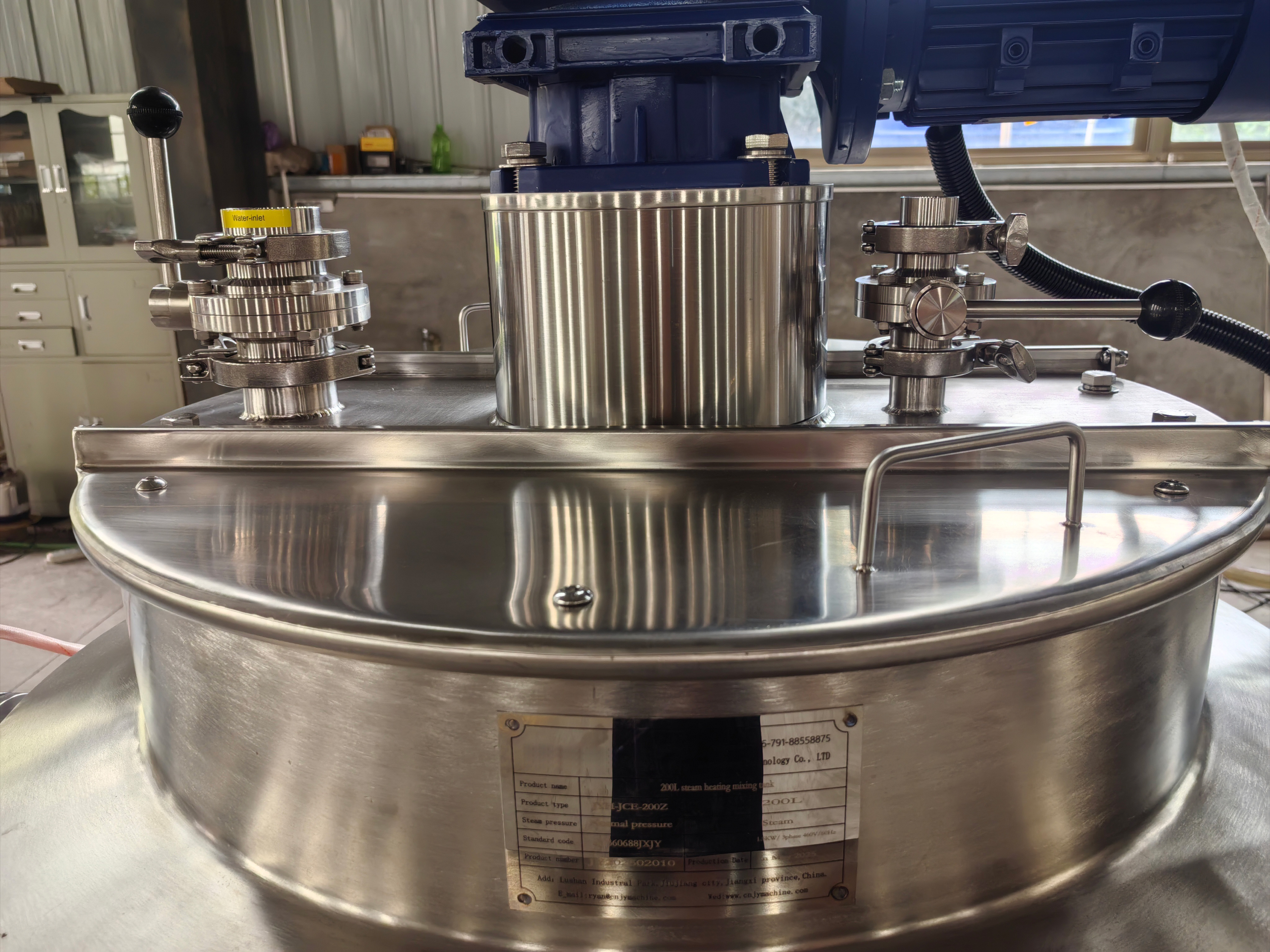

Operation DesignAdopting top feeding and bottom discharging pipeline layout, the whole material loading and unloading process is simple, labor-saving and convenient to operate. :

Customization & After-sales ServiceEquipment dimensions and functional configurations can be fully customized to meet personalized customer requirements. We provide a 1-year warranty, with free replacement for complete machine and accessories within the warranty period. :

Whatapp：+86 182 7962 8835

Email: sales@cookmach.com

mixing tank with agitator

Applications

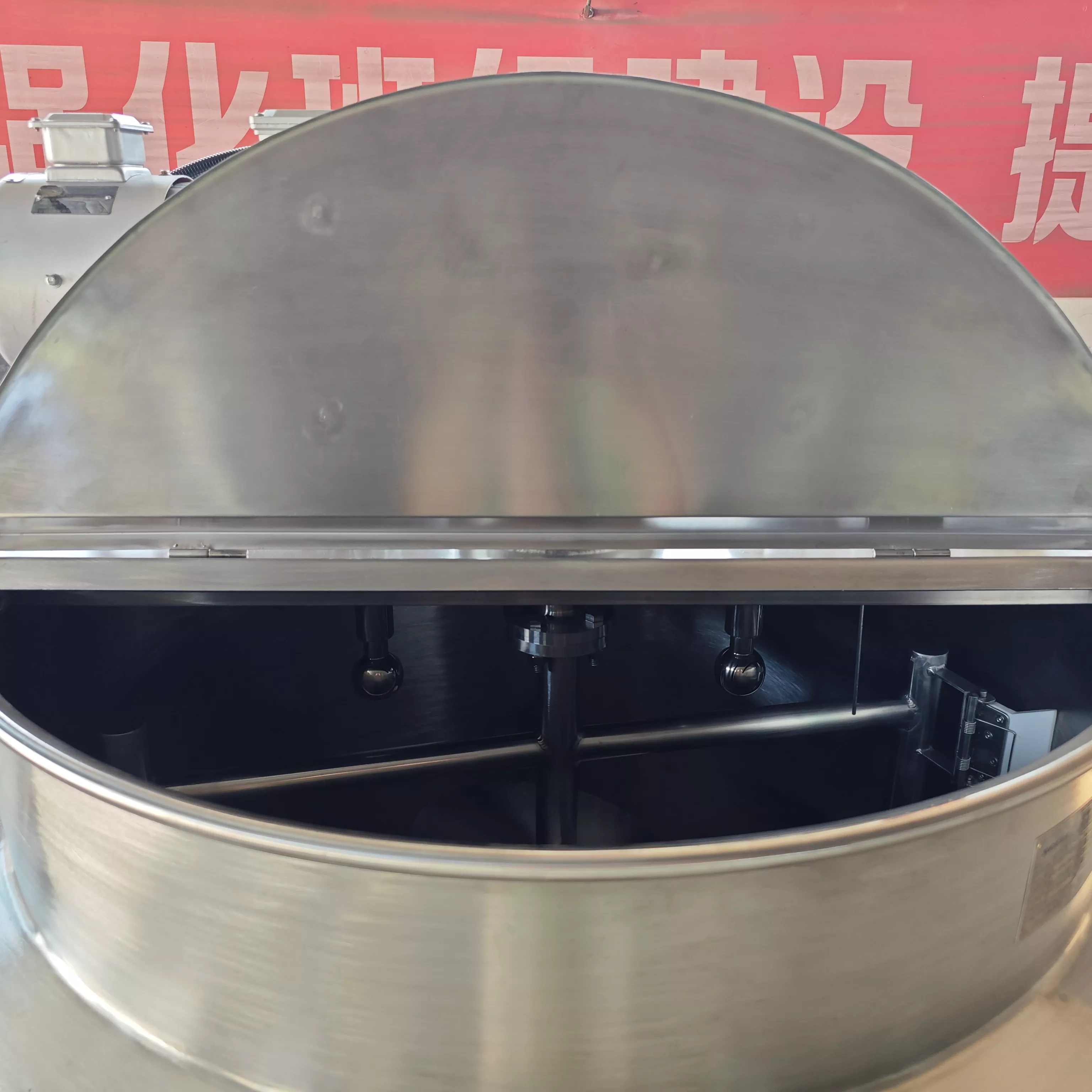

This equipment is well-suited for production processes such as heating, cooling, stirring, mixing and emulsification. It is widely used to process sauces, dairy products, chocolate, porridge and other food materials. Equipped with a PLC intelligent stirring control system, it delivers thorough and consistent material mixing. The open-style design enables intuitive operation and real-time observation of the production status.

Features

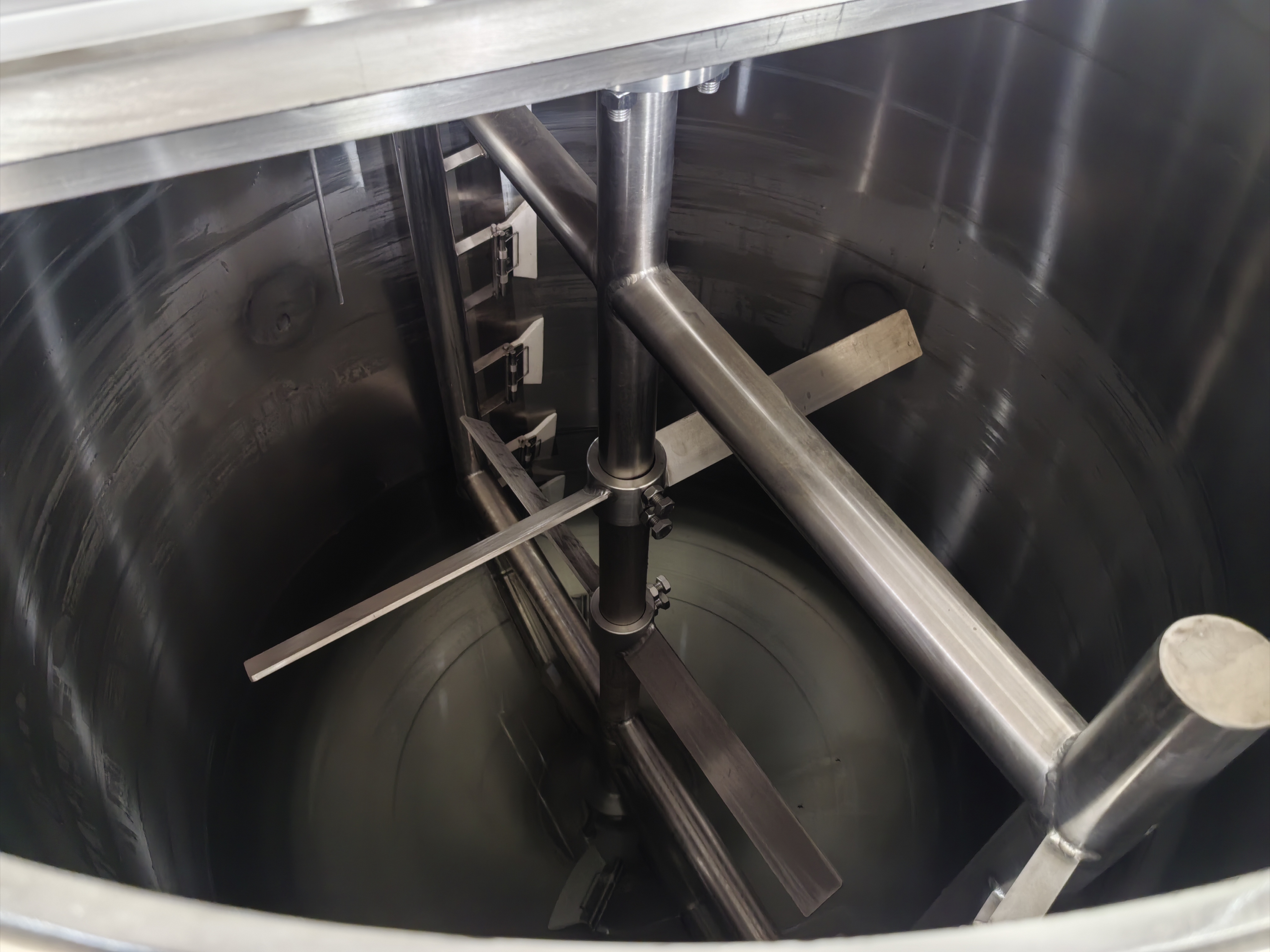

Constructed with food-grade 304/316 stainless steel for safe food production. Adopts PLC and touch screen integrated automatic control, greatly minimizing manual operation. Multiple types of agitators are optional to meet diverse processing demands. Designed with an elliptical bottom head, allowing the agitator to fully fit the tank wall. Ensures superior mixing uniformity while facilitating quick and complete bottom discharging.

Applications

Model	Volume (L)	Diameter （mm）	Heating power （Kw）	Heating method	Dimensions （mm）
CKH-JCE-500	500	Φ800*900	2.2	Z-steam/D-electric	140011002250
CKH-JCE-1000	1000	Φ1100*1000	/	Z-steam/D-electric	170014002350
CKH-JCE-2000	2000	Φ1300*1500	3	Z-steam	190016002950
CKH-JCE-3000	3000	Φ1500*1500	/	Z-steam	210018003050
CKH-JCE-5000	5000	Φ1700*2000	/	Z-steam	230020003650
